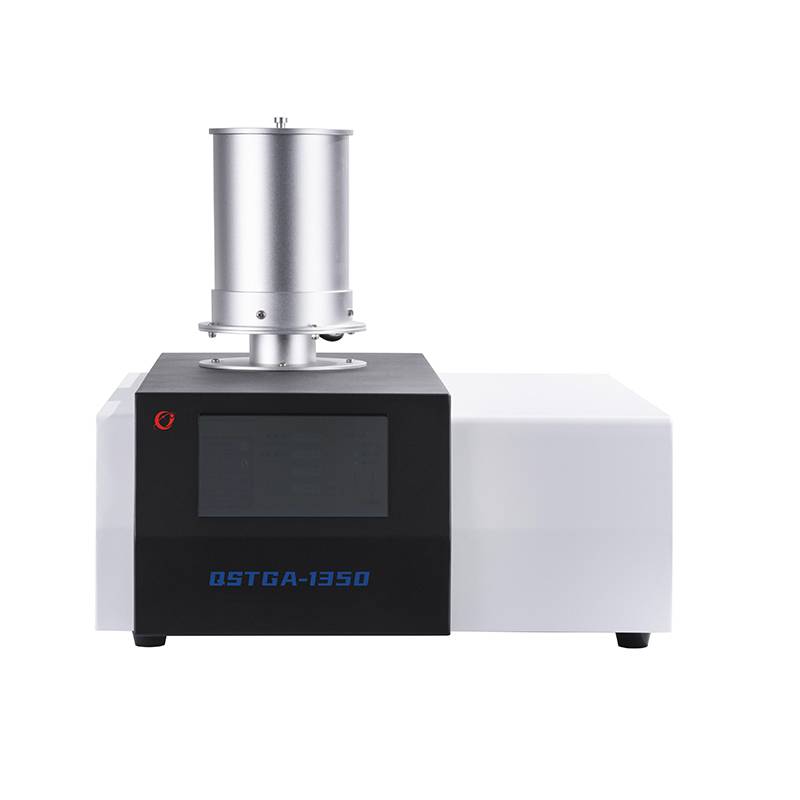

Cheesion Thermogravimetric Analyzer (TGA) delivers accurate and reliable measurements of weight changes in materials as a function of temperature or time
Cheesion Thermogravimetric Analyzer (TGA) delivers accurate and reliable measurements of weight changes in materials as a function of temperature or time.
With advanced balance technology, high sensitivity, and user-friendly operation, Cheesion TGA is an ideal tool for studying thermal stability, decomposition, oxidation, and material composition.
It is widely used in both research laboratories and industrial quality control to ensure performance, safety, and innovation in material development.
| Cheesion TGA Series Technical Specifications | |
| Parameter | Specification |
| Temperature Range | Room temperature to 1250°C |
| Temperature Resolution | 0.01°C |
| Temperature Fluctuation | ±0.1°C |
| Heating Rate | 0.1 to 100°C/min |
| Temperature Control Modes | Heating, constant temperature (isothermal), and cooling |
| Program Control | Multi-segment heating and constant temperature programmable (up to 5 segments simultaneously) |
| Balance Measuring Range | 0.01mg to 3g (expandable to 30g) |
| Sensitivity | 0.01mg |
| Isothermal Holding Time | User-defined (any duration) |
| Display Mode | Large Chinese character LCD display |
| Atmosphere Control | Built-in gas flowmeter with two-way gas switching and flow control |
| Software Features | Intelligent software automatically records TG curves; supports data processing; free switching between TG/DTG, mass, and percentage coordinates |
| Data Interface | Standard USB interface |
| Power Supply | AC 220V 50Hz |
| Dimensions (W×D×H) | 500 × 400 × 430 mm |
Our TGA solutions are designed for diverse industries and research fields:
1. Polymers & Plastics – Analyzing thermal stability, filler content, and decomposition behavior.
2. Chemicals & Composites – Studying oxidation resistance, degradation, and composition analysis.
3. Pharmaceutical Industry – Evaluating thermal decomposition, formulation stability, and excipient compatibility.
4. Environmental Studies – Measuring combustion, ash content, and material degradation under different conditions.
5. Academic & Research Labs – Thermal analysis for teaching, advanced materials research, and innovative applications.
